Model LG 580.73189 300 WINDOW AC – Common Parts & Diagrams
Diagram 0

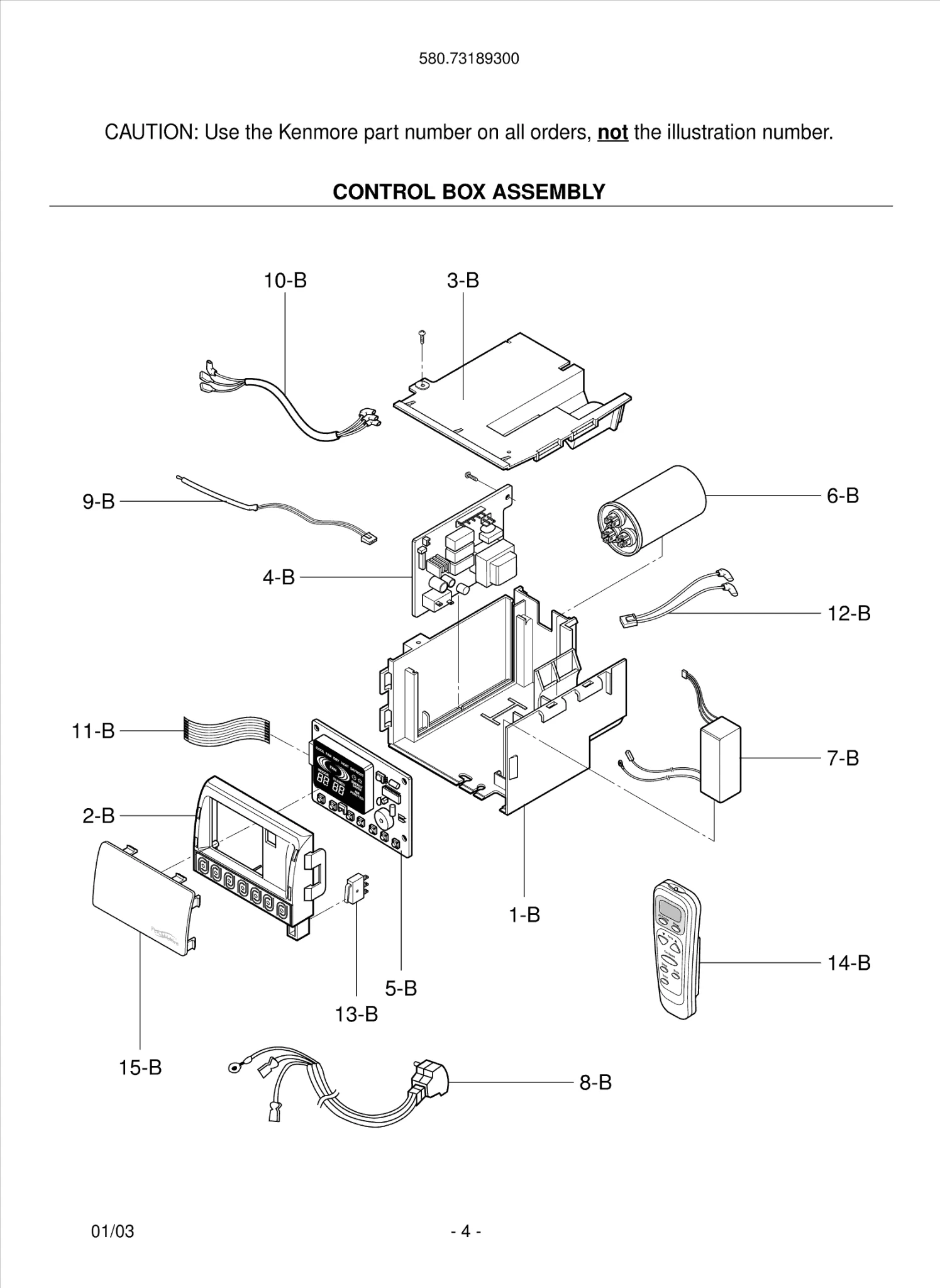

Diagram 1

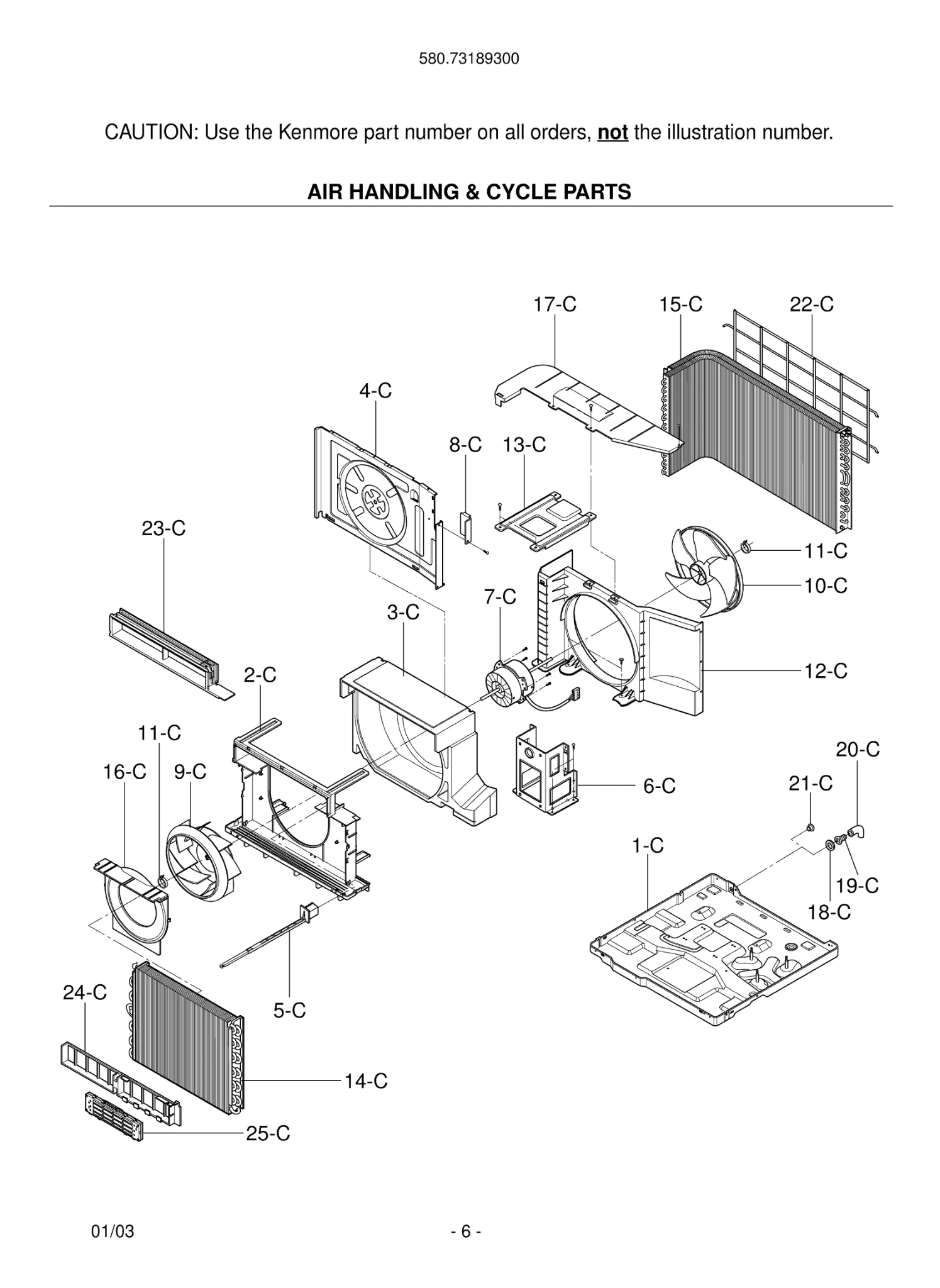

Diagram 2

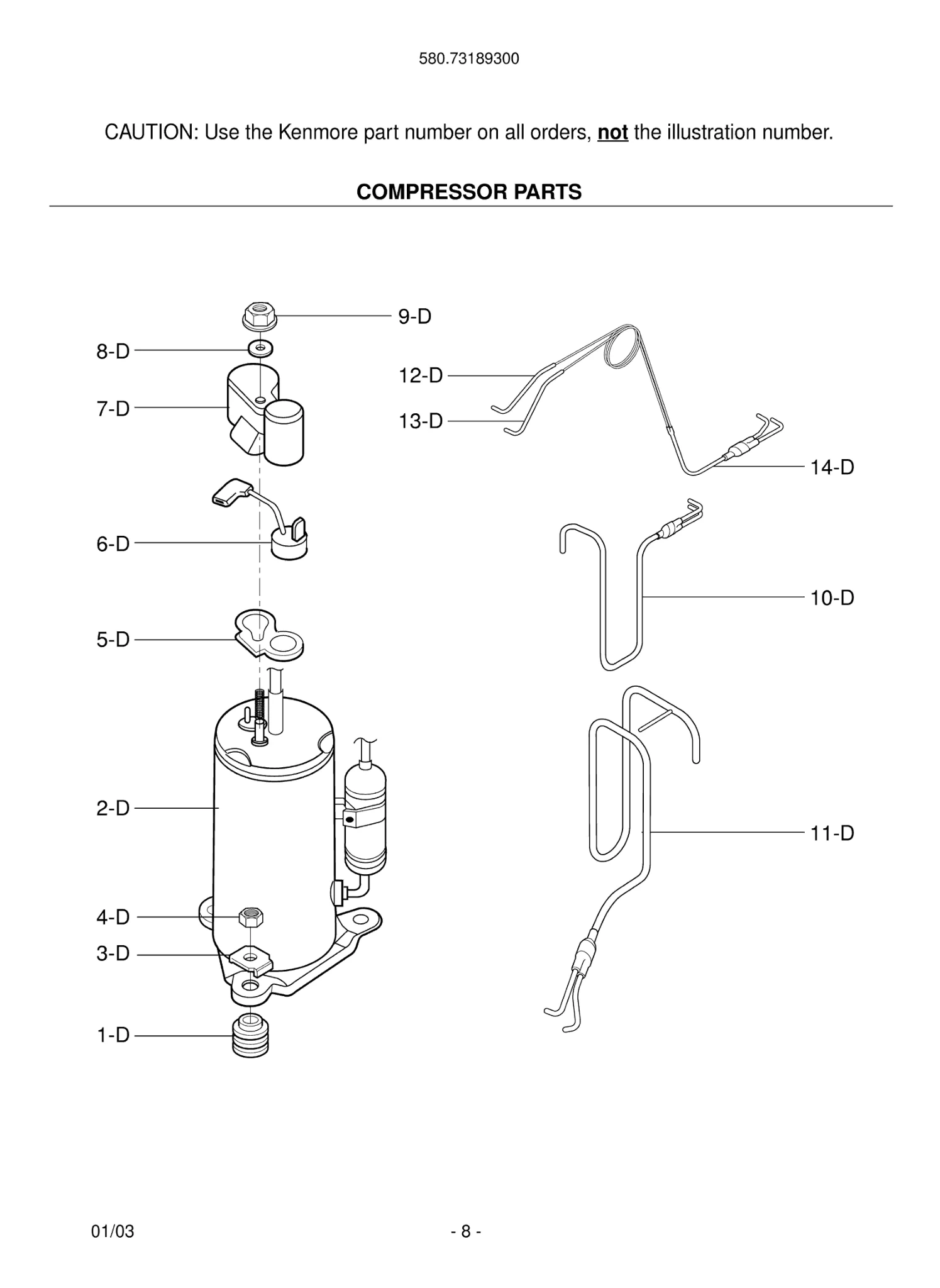

Diagram 3

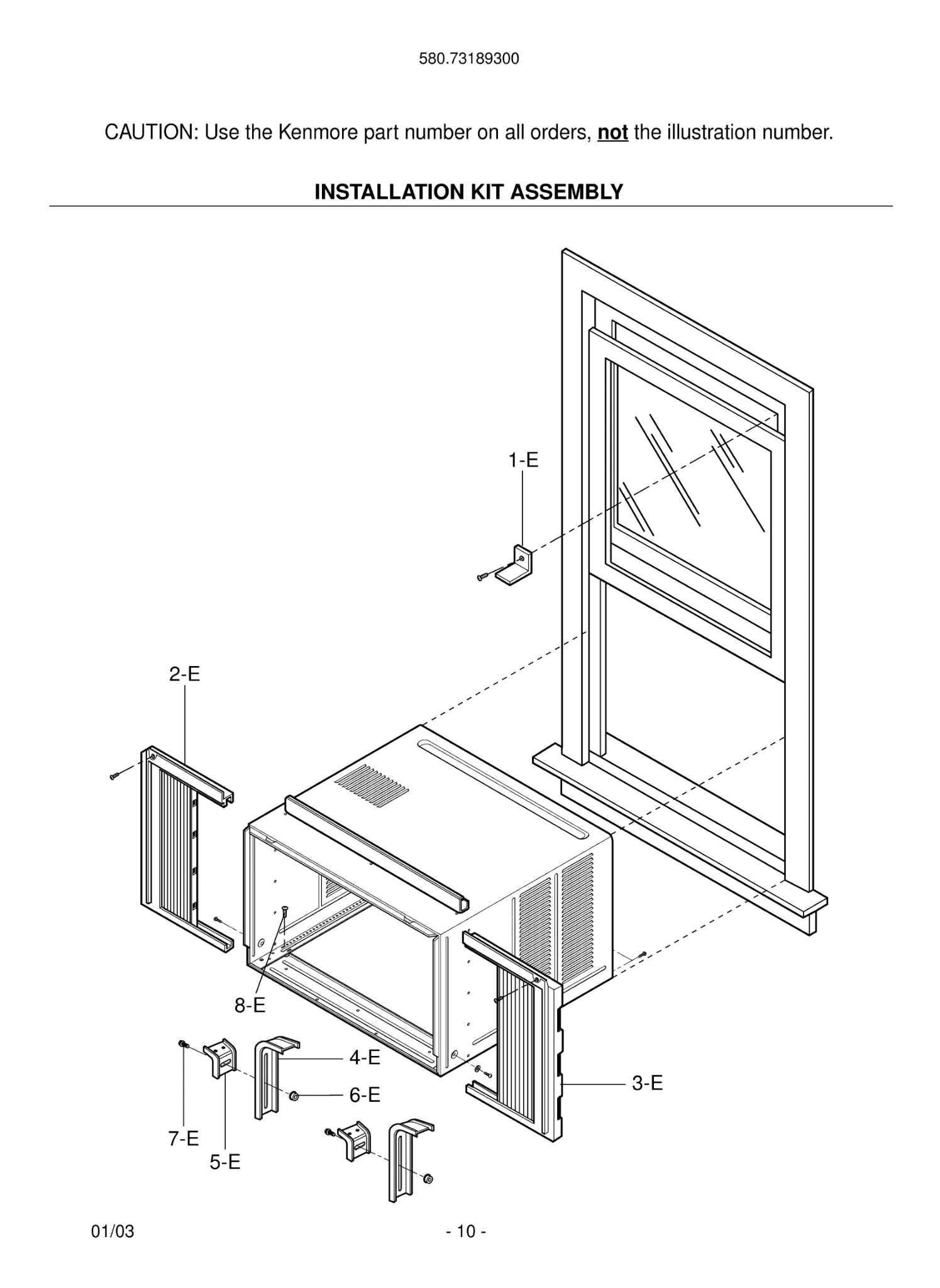

Diagram 4
Common parts from model LG 580.73189 300 WINDOW AC
1-B
CONTROL BOX,SINGLE LGE 4994A20045A Contact Us For Availability
1-C
BASE ASSEMBLY,WELD[SINGLE] LGE 3041A20023X Contact Us For Availability
1-D
BUSH ANTI VIBRATION QJ-COMP(96 LGE 4H00982C Contact Us For Availability
2-B
PANEL,CONTROL LGE 3720A10110A Contact Us For Availability
2-C
AIR GUIDE LGE 5238A10008A Contact Us For Availability
2-D
COMPRESSOR SET LGE 2520UMKK2AA Contact Us For Availability
3-B
COVER LGE 3550A30122A Contact Us For Availability
3-C
SCROLL LGE 3072A20005A Contact Us For Availability
3-E
CURTAIN ASSY LGE 4959AR3402F Contact Us For Availability
4-A
LOUVER,HORIZONTAL LGE 4758A30022A Contact Us For Availability
4-B
PWB(PCB) ASSEMBLY,MAIN(AC) LGE 6871A20271B Contact Us For Availability
4-C
BARRIER,SINGLE LGE 4790A20031A Contact Us For Availability
4-E
SUPPORT BRACKET GA-1834FC PIGE LGE 3H01479D Contact Us For Availability
5-A
LOUVER,VERTICAL LGE 4758A20042A Contact Us For Availability
5-B
PWB(PCB) ASSEMBLY,MAIN(DC) LGE 6871A20323B Contact Us For Availability
5-C
DAMPER,VENTILATION LGE 4900A20004A Contact Us For Availability
5-E
SILL BRACKET PIGEON GRAY GA-12 LGE 3H01395C Contact Us For Availability
6-A
LOUVER,VERTICAL LGE 4758A20042B Contact Us For Availability
6-C
MOUNT,MOTOR LGE 4960AR2895B Contact Us For Availability
7-A
CABINET ASSEMBLY,SINGLE LGE 3091AR6057F Contact Us For Availability
7-B
H.V ASSEMBLY LGE 6609A10003Q Contact Us For Availability
7-C
MOTOR ASSEMBLY,SINGLE LGE 4681A20011M Contact Us For Availability
7-D
COVER,TERMINAL LGE 3550U-L006A Contact Us For Availability
8-A
GUIDE,UPPER LGE 2H00858E Contact Us For Availability
8-B
POWER CORD ASSEMBLY LGE 6411A20011K Contact Us For Availability
8-D
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
9-A
LABEL,ENERGY LGE 3850A20783H Contact Us For Availability
9-B
THERMISTOR ASSEMBLY LGE 6323A20004E Contact Us For Availability
10-C
FAN ASSEMBLY,AXIAL LGE 5901A20010A Contact Us For Availability
11-D
TUBE ASSEMBLY,SUCTION(OUTDOOR) LGE 5211A20441A Contact Us For Availability
12-C
SHROUD LGE 4998A10013A Contact Us For Availability
13-B
SWITCH ASSEMBLY,MICRO LGE 6601A30002A Contact Us For Availability
13-D
TUBE,FORMED LGE 5210A21099B Contact Us For Availability
14-B
REMOTE CONTROLLER ASSEMBLY LGE 6711A20053B Contact Us For Availability
14-B
Remote Controller Assembly LGE 6711A90027B Contact Us For Availability
14-C
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20091A Contact Us For Availability
14-D
TUBE ASSEMBLY,CAPILLARY LGE 5211A30275R Contact Us For Availability
15-B
WINDOW,DISPLAY LGE 3790A20033B Contact Us For Availability
15-C
CONDENSER ASSEMBLY,BENT LGE 5403A20062B Contact Us For Availability
16-C
ORIFICE LGE 4948A30008A Contact Us For Availability
17-C
COVER LGE 3550A20089A Contact Us For Availability
20-C
PIPE ELBOW GA-1834FC/1835FC/21 LGE 4H00261A Contact Us For Availability
21-C
CAP, HOLE GA-0711HCR/GA-071 LGE 4H02023A Contact Us For Availability
22-C
GRILLE,REAR LGE 3530A20042D Contact Us For Availability
24-C
CASE LGE 3110A20080A Contact Us For Availability
25-C
AIR PURIFYING FILTER LGE 5983A10009K Contact Us For Availability
× ![]()
